Triturador de cone hidráulico de cilindro único da série CH

Capacidade: 25-1010t/h

Triturador de cone hidráulico de cilindro único pertence ao equipamento moderno de britagem secundária e terciária. Ele adota o design integrado de cilindro hidráulico único para ajuste de intervalo, proteção contra sobrecarga e limpeza da cavidade através de um único cilindro hidráulico. Esta máquina é amplamente utilizada para a britagem de granito, basalto, minério de ferro, calcário e outros minerais e pedras de alta dureza de média a fina.

Construção de Alta Resistência
Custo operacional baixo
Manutenção Fácil
Global after-sales
WhatsApp Flora
+86 15560175572
Chat Agora
VISÃO GERAL DO PRODUTO

Especificações Técnicas & Aplicações

Informações técnicas detalhadas, princípios de funcionamento e cenários de aplicação. Configurações personalizadas disponíveis com base nos requisitos do seu projeto.

Single Cylinder Hydraulic Cone Crusher | Complete Product Details

Product Introduction

Single Cylinder Hydraulic Cone Crusher is a new-generation intelligent medium and fine crushing equipment optimized and upgraded for modern mining and aggregate production lines. Different from traditional spring and multi-cylinder cone crushers, it adopts an integrated single-cylinder hydraulic driving structure, which simplifies the mechanical structure while realizing automatic hydraulic adjustment, iron release protection and cavity clearing functions.
This cone crusher is specially designed for high-hardness materials such as granite, basalt, iron ore and quartz stone. It is the core secondary and tertiary crushing equipment in stone crushing plants, mines and sand making production lines. With streamlined body design, stable running performance and low comprehensive failure rate, it has become the preferred fine crushing equipment for small and medium-sized mining and quarry projects worldwide.

Performance Features

  • Integrated Single-cylinder Hydraulic System One hydraulic cylinder realizes discharge gap adjustment, overload iron release and automatic cavity clearing, simple structure, fewer fault points and higher operation stability.
  • Excellent Finished Particle Shape Optimized crushing cavity curve design enhances material laminated crushing effect, uniform finished aggregate size, good cubic shape, highly qualified for high-standard construction materials.
  • Intelligent Automatic Operation Matching intelligent PLC control system, real-time monitoring of current, pressure, temperature and vibration, supporting automatic feeding adjustment and fault alarm.
  • Strong Overload Protection Ability Automatic hydraulic pressure relief when encountering uncrushable materials, effectively protecting main shaft and frame from damage, reducing downtime loss.
  • Compact Structure & Easy Layout Integrated body structure saves installation space, flexible for various site conditions, convenient for mobile and fixed crushing stations.
  • Low Operation and Maintenance Cost Standardized wear parts design, convenient disassembly and replacement, low energy consumption and long service life of vulnerable parts.

Application Scenarios

Single cylinder hydraulic cone crusher is widely used for medium and fine crushing of medium and high hardness materials, covering multiple industrial fields:
  • Secondary and tertiary crushing of quarry aggregate and artificial sand production line
  • Fine crushing processing of granite, basalt, river stone, quartz stone and other hard rocks
  • Ore crushing and pretreatment of iron ore, copper ore, gold ore and manganese ore mines
  • Construction waste crushing and recycled aggregate processing projects
  • Road, railway, hydropower and building material raw material processing
It can form a complete closed-loop crushing and screening system together with jaw crusher, vibrating screen and belt conveyor, suitable for long-term continuous industrial production.

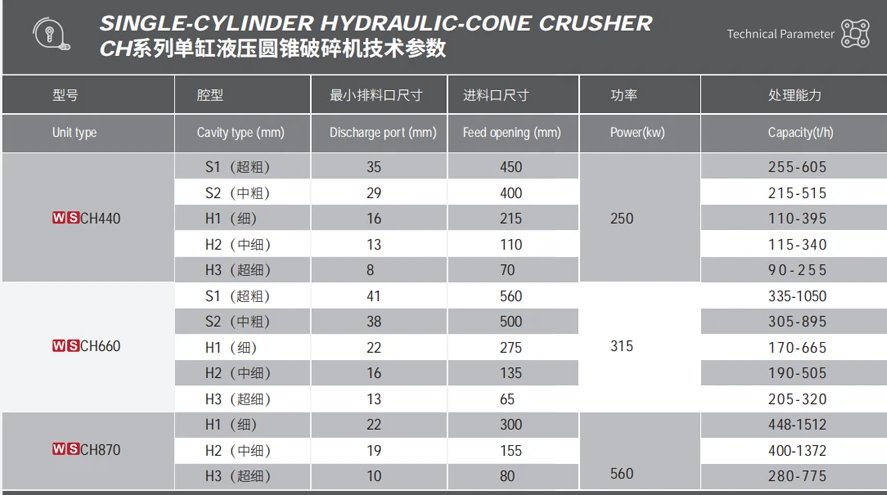

Product Models & Technical Parameters

We supply full series single cylinder hydraulic cone crusher models to meet different output and particle size requirements:

All models support customized cavity type, power configuration and production line layout according to customer material hardness, feeding size and finished grain requirements.
PRINCIPAIS CARACTERÍSTICAS

Por Que Escolher Este Equipamento

Projetado para confiabilidade, construído para desempenho. Cada produto WSHT reflete nosso compromisso com a qualidade e inovação.

01

Qualidade de Construção Premium

High-grade steel structure & precision CNC machining for long-term reliability in the harshest mining conditions.

02

Alta Produtividade

Geometria otimizada da câmara e design inteligente entregam máxima produção por hora com mínima interrupção.

03

Eficiência Energética

Engenharia avançada reduz o consumo de energia em até 20% em comparação com projetos convencionais.

04

Global Support Network

Instalação, comissionamento, treinamento do operador e fornecimento de peças de reposição disponíveis mundialmente.
