Tabela Vibratória

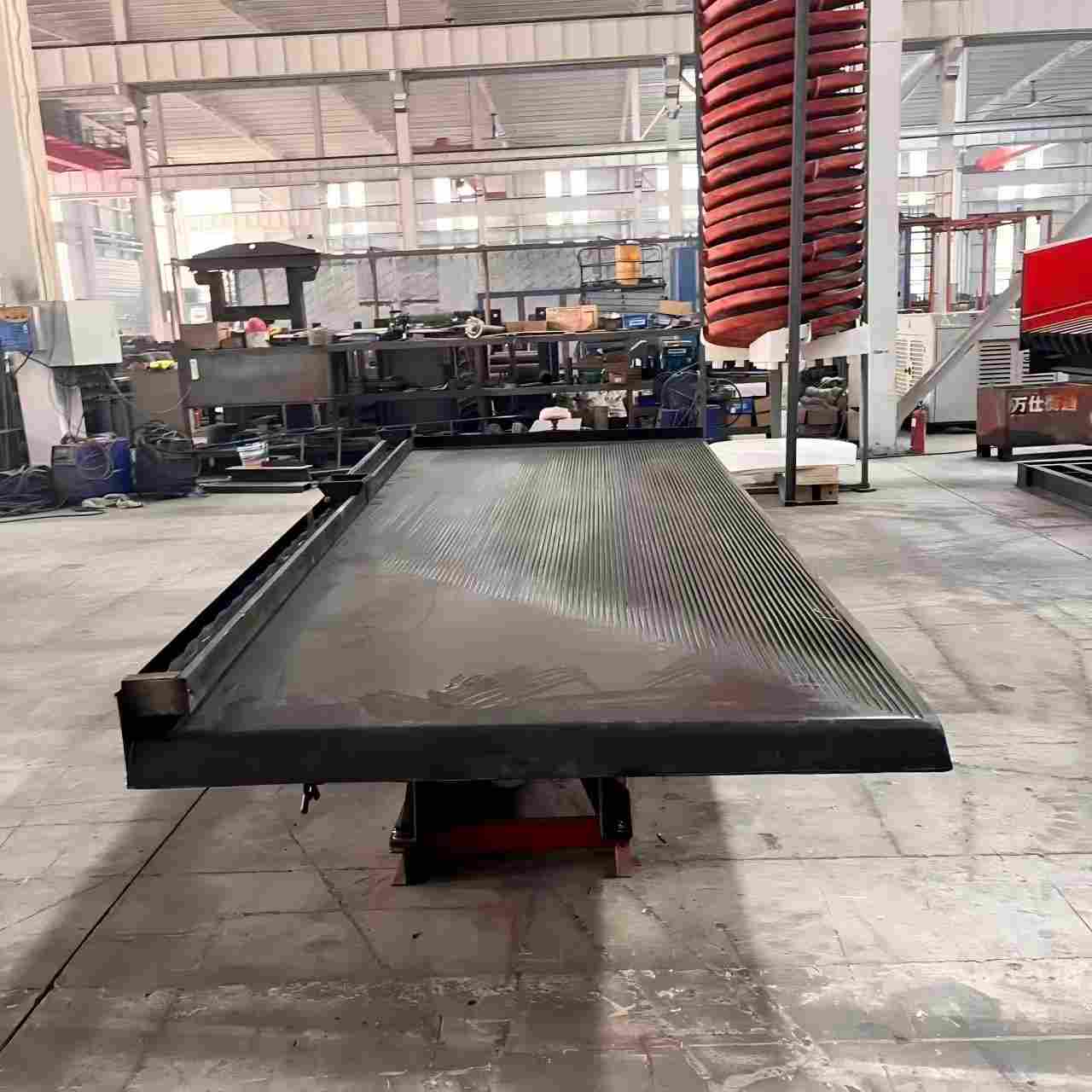

6S Mineral Processing Shaking Table

The 6S shaking table is a classic gravity separation mineral processing machine designed for fine-grained ore sorting. It utilizes the difference in mineral specific gravity, water flow washing and mechanical vibration to separate high-grade concentrate, middlings and tailings. Widely used for rock gold, alluvial gold, tungsten, tin, copper and other non-ferrous metal ore beneficiation. As core equipment in gravity separation plants, the shaking table features stable operation, high sorting precision and zero chemical pollution, which is very suitable for small and medium-scale mining projects.

1. Shaking Table Models & Technical Parameters

Wanshihengtong provides complete series 6S shaking tables to match different ore processing capacities and feeding particle sizes. All models adopt reinforced steel frame and thickened riffle bed surface for longer service life.

Common mainstream models include:

• 6S Small Shaking Table (Mini Type): For laboratory testing and small capacity 1–5TPH gold processing
• 6S Standard Shaking Table: Most popular model for 5–30TPH rock gold and alluvial gold beneficiation
• 6S Large Shaking Table: For high-output mineral processing plants above 30TPH

Each model supports customized deck length, stroke, vibration frequency and water flushing system according to customer ore characteristics.

2. Core Performance Features

• Adopts asymmetric reciprocating transmission structure, stable vibration and uniform ore separation
• Unique ladder riffle design effectively traps fine gold particles, improving recovery rate
• Adjustable deck angle, stroke and water flow to adapt various ore density and particle sizes
• Complete water circulation system, low water consumption and environmental friendly
• Low motor power, continuous 24-hour operation without failure
• Clear material layering, obvious distinction between concentrate and tailings

3. Product Advantages

High Recovery & High Concentrate Grade

Compared with other gravity separation machines, the shaking table can obtain the highest pure gold concentrate grade, greatly improving final mineral profit.

Wide Adaptability

It works efficiently for alluvial gold, rock gold, tungsten, tin, coltan, copper ore and other minerals, suitable for different mine environments in Africa, Southeast Asia and South America.

Easy Operation & Low Maintenance

Simple mechanical structure, no complex accessories. Workers can master operation quickly. Wearing parts are few and easy to replace, greatly reducing later operation cost.

Factory Direct Supply & Customizable

Wanshihengtong is a professional shaking table source manufacturer. No middleman price difference. We provide model selection, production line layout, installation guidance and after-sale technical support.
