Trommel Screen: Working Principle, Benefits & Applications for Alluvial Gold Washing

When processing placer alluvial ore, sticky clay and mixed‑size gravel always bring screening troubles. Ordinary vibrating screens are easy to get blocked by wet mud. A trommel screen (rotary drum screen) becomes the preferred washing‑screening unit for small‑to‑medium mining operations.

How Does A Trommel Screen Work

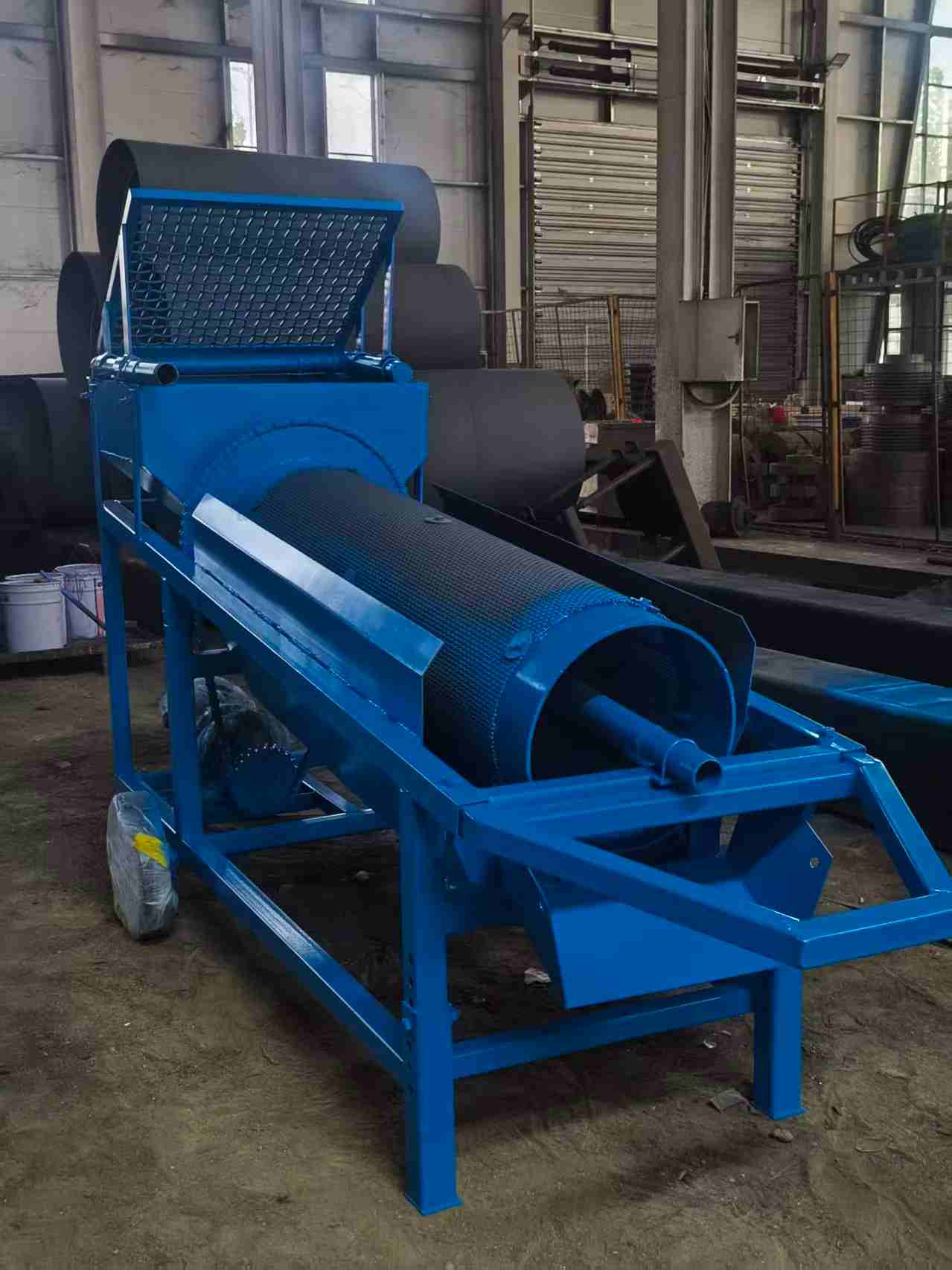

The core component is an inclined rotating cylindrical drum fitted with wear‑resistant screen mesh. Driven by reduction motor, the drum rotates slowly. Raw ore enters from feed hopper. High‑pressure water jets inside wash clay and mud away. Fine mineral particles pass through screen holes, flow down to next‑stage gravity separation equipment such as sluice box, shaking table or centrifugal concentrator. Large‑size rock waste moves along drum slope and discharges as tailings.

Main Advantages of Mining Trommel Screen

✅ Anti‑clogging performance: Rotation tumbling self‑cleans mesh, works well for wet, clay‑bearing ore which blocks vibrating screens easily. ✅ Flexible capacity: From small portable unit to large stationary model, capacity covers 1‑80 tons per hour. ✅ Modular configuration: Can match feed hopper, high‑pressure water system, sluice box, wheel‑mobile chassis. ✅ Low maintenance: Simple mechanical structure, wear‑resistant manganese steel screen panel for long service life. ✅ Reduce downstream load: Removes large waste rock in early stage, cuts energy consumption for subsequent grinding and beneficiation.

Typical Application Scenarios

• Alluvial gold / placer gold ore washing
• Tin, tantalum‑niobium, antimony placer ore pre‑processing
• Mobile small‑scale gold wash plant (trommel with sluice box)
• Pre‑screening before gravity separation (jig, shaking table, centrifuge)

Matching Equipment Configuration

A complete trommel‑based washing set usually includes:

1. Vibrating / loading feed hopper
2. Trommel screen main drum
3. High‑pressure water pump & pipeline
4. Sluice box for rough gold collection
5. Belt conveyor for tailings discharge
6. Optional mobile wheel chassis for site transfer

Key Points When Selecting Trommel Screen

1. Raw ore property: clay content, maximum feeding particle size
2. Required processing capacity per hour
3. Screen aperture size according to target mineral grain size
4. Power source: electric motor or diesel power pack for off‑grid mine site
5. Working condition: stationary installation or mobile portable type

We supply customized trommel screen and complete alluvial ore washing‑beneficiation solution. If you want to get technical parameters and quotation, please tell us your ore condition and target capacity. Our engineering team will provide suitable proposal for your mining project.
