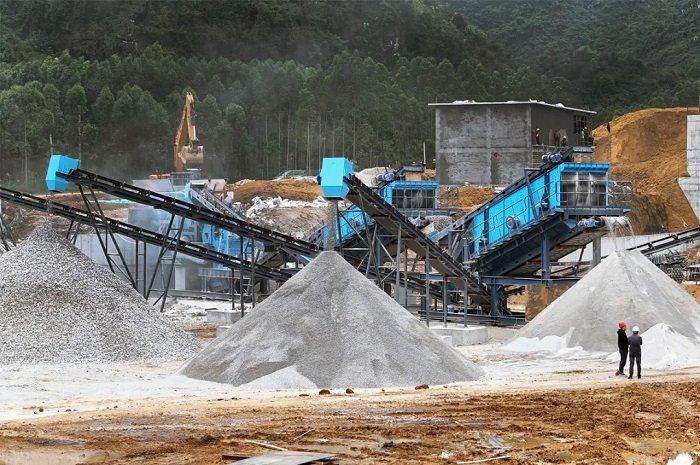

Our modular crushing and screening plant is a fully‑integrated processing system built for remote and mobile‑demand projects. Designed with independent skid‑mounted modules, the whole line combines feeding, crushing, multi‑deck screening and material conveying into a compact workflow.
Unlike traditional fixed systems that need heavy concrete foundation work, this modular unit requires minimal site preparation. All modules are pre‑assembled and tested before delivery. After arrival on‑site, operators only need to finish simple connection work, then the plant can quickly go into production. It supports container‑based transportation, easy relocation between different working locations, well‑suited for medium‑scale processing projects.
| Item | Specification |
|---|---|
| Processing Capacity | 80‑200 TPH |
| Max Feed Size | ≤500 mm |
| Output Size | 0‑80 mm adjustable |
| Total Installed Power | 160‑220 kW |
| Total Weight | 35‑48 T |
| Transport Dimension(L×W×H) | 13500 × 2900 × 3800 mm |
✅ Fast deployment：Modular split‑frame design, no complex civil construction required, shorten commissioning cycle greatly. ✅ Flexible transportation：Each module fits standard container shipping, convenient for cross‑region delivery. ✅ Stable continuous running：Heavy‑duty frame structure, adapt to tough field working environment. ✅ Custom‑adjustable output size：Adjust finished particle range to match downstream processing requirements. ✅ Good expandability：Can connect with sluice box, shaking table and other gravity separation units to build a complete processing workflow. ✅ Two power modes available：grid power supply or optional diesel generator for sites without stable electricity.
Raw material enters from feeding module → goes into crushing unit for size reduction → material is delivered to vibrating screen by conveyors → classified into multiple fractions. Qualified material can flow into follow‑up gravity separation equipment for further concentration, unqualified material can return for re‑crushing.
This crushing‑screening plant can work together with our gravity separation equipment: vibrating screen, sluice box, shaking table, to realize full‑set material treatment from size reduction to high‑precision separation.
Send us your site conditions, expected hourly capacity and power situation, we provide customized solution for your project.#ModularCrushingScreeningPlant #IntegratedProcessingSystem #MiningProcessingEquipment
