A estação móvel de britagem contra-impacto WSHT WSF Series integra funções de britagem, triagem, transporte e outras em uma única unidade, projetada especialmente para processamento de materiais com diferentes tamanhos de partícula. Equipada com tecnologia avançada de britagem contra-impacto e sistema de locomoção com esteira, alcança operações de britagem de alta eficiência e baixo consumo. Modelos WST213-300 e WSF315-400 oferecem capacidades de 100 a 400 TPH, ideais para mineração, reciclagem de resíduos de construção, engenharia de rodovias e processamento de resíduos industriais.
Informações técnicas detalhadas, princípios de funcionamento e cenários de aplicação. Configurações personalizadas disponíveis com base nos requisitos do seu projeto.

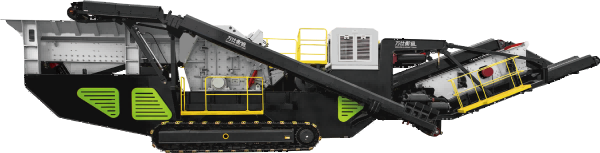

The WSHT WSF Series Crawler Counterattack Mobile Crushing Station integrates crushing, screening, conveying and other functions into one, specially designed for processing materials with different particle sizes. Equipped with advanced counterattack crushing technology and crawler walking system, it achieves high-efficiency and low-consumption crushing operations.
O WSHT WSF Series Crawler Counterattack Mobile Crushing Station integrates a high-performance counterattack crusher, vibrating feeder, belt conveyor, screening system, and crawler travel system on a single heavy-duty chassis. This fully integrated design eliminates the need for split installation and enables rapid deployment at any job site.
Available in two models — WST213-300 and WSF315-400 — the series delivers processing capacities from 100 to 400 tons per hour. The counterattack crusher provides excellent particle shape and high reduction ratio, suitable for processing limestone, granite, basalt, construction waste, and other medium-hard materials into specification-grade aggregates.
The crawler-track undercarriage allows the plant to traverse rough terrain, soft ground, and confined work areas without external transport equipment. The intelligent control system enables remote monitoring and adjustment of all crushing parameters, ensuring safe, reliable, and efficient operation throughout the production cycle.
Integrates crushing, screening, conveying and other functions into one, eliminating the need for separate equipment and complex installation, realizing one-stop processing of materials.
Equipped with crawler walking device, the plant can easily move across various complex terrains, offering strong adaptability and eliminating the need for haul trucks.
Adopts advanced counterattack crushing principle, rapidly reducing materials to desired particle size, significantly enhancing production efficiency with excellent particle shape.
Integrated with intelligent control system for remote monitoring and parameter adjustment. Automatic protection features ensure safe and reliable operation.
| Parameter | WST213-300 | WSF315-400 |
|---|---|---|
| Crusher Type | Counterattack | Counterattack |
| Model | WST213-300 | WSF315-400 |
| Max Feed Size (mm) | ≤300 | ≤400 |
| Discharge Size (mm) | 0-200 | 0-250 |
| Throughput Capacity (t/h) | 100-300 | 150-400 |
| Crusher Motor (kW) | 160 | 200 |
| Feeder Motor (kW) | 5.5×2 | 7.5×2 |
| Conveyor Motor (kW) | 5.5×3 | 7.5×3 |
| Walking Motor (kW) | 30 | 37 |
| Overall Power (kW) | 200 | 250 |
| Overall Weight (t) | 38 | 48 |
| Transport Size L×W×H (mm) | 14500×3000×3800 | 16500×3200×4000 |
Used for crushing various ores and rocks to improve mining efficiency. Processes iron ore, copper ore, limestone, granite, and basalt in open-pit and underground mining operations.
Crushes construction waste into recycled aggregate for use in road construction, concrete production, and other applications. Achieves resource recycling and circular economy benefits.
Used for crushing waste asphalt and concrete during highway construction and renovation, providing high-quality aggregate for road rehabilitation and pavement recycling projects.
Processes industrial waste slag such as steel slag, blast furnace slag, and coal gangue into reusable materials, reducing environmental pollution and improving resource utilization.
Every WSHT WSF Series Crawler Counterattack Mobile Crushing Station is manufactured under strict ISO 9001 quality management standards using premium wear-resistant materials and globally recognized components. We provide a comprehensive 12-month warranty, lifetime technical support, and global spare parts delivery within 72 hours. Our experienced engineering team offers on-site installation guidance, operator training, process optimization consultation, and 24/7 remote technical support to ensure maximum uptime and production efficiency for your operation.
Projetado para confiabilidade, construído para desempenho. Cada produto WSHT reflete nosso compromisso com a qualidade e inovação.
High-grade steel structure & precision CNC machining for long-term reliability in the harshest mining conditions.
Geometria otimizada da câmara e design inteligente entregam máxima produção por hora com mínima interrupção.
Engenharia avançada reduz o consumo de energia em até 20% em comparação com projetos convencionais.
Instalação, comissionamento, treinamento do operador e fornecimento de peças de reposição disponíveis mundialmente.
A WSHT WSE Série de Estação Móvel de Britagem de Mandíbulas com Tracção de Corrente de Ar ...
A estação móvel de britagem impacto WSHT WSC Series é uma equipamento de britagem multifun...
A estação móvel de britagem de cone WSHT WSY Series está equipada com britadores de cone h...
Nossa equipe de engenharia projetará uma solução personalizada com base nas condições do seu local, características do minério e metas de produção. Gestão de projeto bilingue com suporte end-to-end.
