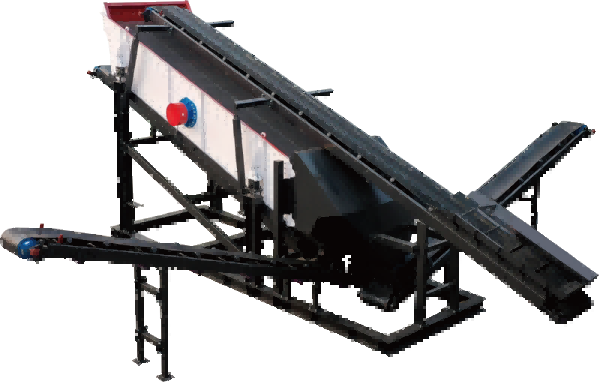

A estação móvel modular WSHT WSMK Série é uma solução de triagem modular, onde cada unidade é como um bloco de construção, formando uma linha de produção completa ao combinar vários módulos. Possui a capacidade de trabalhar continuamente em todas as condições climáticas, reduzindo operações de manipulação de materiais e promovendo colaboração eficiente de maquinaria auxiliar. Os modelos WSMK2470 e WSMK370 oferecem capacidades entre 100 e 350 TPH, ideais para diversas aplicações de triagem de materiais.
Informações técnicas detalhadas, princípios de funcionamento e cenários de aplicação. Configurações personalizadas disponíveis com base nos requisitos do seu projeto.
The WSHT WSMK Series Modular Screening Station is a modular screening equipment solution where each unit is like a building block, forming a complete production line by combining several modules. Featuring the capability to work continuously in all weather conditions, reducing material handling operations and promoting efficient collaboration of auxiliary machinery.
O WSHT WSMK Series Modular Screening Station is an innovative modular screening equipment solution. As the name suggests, each modular unit is like a building block. By combining several modules, a complete production line can be formed. The equipment has the capability to work continuously in all weather conditions, reducing material handling operations and promoting the efficient collaboration of all auxiliary machinery.
Available in two models — WSMK2470 and WSMK370 — the series delivers processing capacities from 100 to 350 tons per hour. The vibrating screen with screen sizes of 6000×2000mm and 3000×700mm provides large screening area for efficient material classification into multiple size fractions.
The modular screening station can be conveniently transported to the job site by flatbed truck, ensuring quick startup once the equipment arrives. Its optimized design meets the most critical technical requirements of the screening machine, with high production efficiency and consistent product particle size. All modules are pre-assembled and debugged in the factory, significantly reducing on-site installation time.
All modules are pre-assembled and debugged in the factory, significantly reducing on-site installation time and ensuring equipment quality from the source.
The equipment's process flow is coordinated and smooth, with high selection matching, resulting in significantly higher operational efficiency and production output.
Installation and maintenance processes are simple and quick, ensuring operational safety and efficiency with minimal downtime for servicing.
The modular station is easy to dismantle and reinstall, ensuring projects can be quickly relocated and reorganized based on construction needs.
| Parameter | WSMK2470 | WSMK370 |
|---|---|---|
| Vibrating Screen Size (mm) | 6000×2000 | 3000×700 |
| Screen Decks | 2(3) | 2(3) |
| Screen Motor Power (kW) | 22(30) | 30(45) |
| A-Layer Belt Conveyor | B650×10M | B650×11M |
| A-Layer Unloading Height (mm) | 3500 | 3500 |
| A-Layer Motor Power (kW) | 5.5 | 7.5 |
| B-Layer Belt Conveyor | B650×10M | B650×11M |
| B-Layer Unloading Height (mm) | 3000 | 3000 |
| B-Layer Motor Power (kW) | 5.5 | 7.5 |
| C-Layer Vibrating Screen | B650×10MM | B650×11MM |
| C-Layer Unloading Height (mm) | 4000 | 4000 |
| C-Layer Motor Power (kW) | 11 | 15 |
| Overall Size L×W×H (mm) | 10970×3100×6100 | 12000×4000×6100 |
| Processing Capacity (t/h) | 100-350 | 200-500 |
| Main Belt Conveyor Size (m) | B1000×15M | B1000×15M |
| Main Belt Motor Power (kW) | 11 | 11 |
| Under Screen Belt Conveyor (m) | B1000×11.5M | B1000×11.5M |
| Under Screen Belt Motor (kW) | 7.5 | 7.5 |
Suitable for all kinds of quarries, screening building demolition waste disposal and mine operations. Provides high-quality graded aggregates for concrete and asphalt production.
Screens and separates construction waste into different grades for reuse. Enables resource recycling and reduces environmental pollution from construction debris.
Used for screening various ores and minerals in mining operations. Separates different size fractions for further processing and beneficiation.
Classifies natural sand and gravel deposits into construction-grade products. Handles wet materials with specially designed screen configurations.
Every WSHT WSMK Series Modular Screening Station is manufactured under strict ISO 9001 quality management standards using premium wear-resistant materials and globally recognized components. All modules are pre-assembled and tested in the factory before delivery. We provide a comprehensive 12-month warranty, lifetime technical support, and global spare parts delivery within 72 hours. Our experienced engineering team offers on-site installation guidance, operator training, process optimization consultation, and 24/7 remote technical support to ensure maximum uptime and production efficiency for your operation.
Projetado para confiabilidade, construído para desempenho. Cada produto WSHT reflete nosso compromisso com a qualidade e inovação.
High-grade steel structure & precision CNC machining for long-term reliability in the harshest mining conditions.
Geometria otimizada da câmara e design inteligente entregam máxima produção por hora com mínima interrupção.
Engenharia avançada reduz o consumo de energia em até 20% em comparação com projetos convencionais.
Instalação, comissionamento, treinamento do operador e fornecimento de peças de reposição disponíveis mundialmente.
